Methyl bromoacetate Methyl bromoacetate

Structural formula

• Numbering system
• Physical property data
• Toxicological data
• Ecological data
• Molecular structure data
• Computing chemical data
• More
  • Properties and Stability
  • Storage method
  • Synthesis method
  • Purpose

Numbering system

CAS number:96-32-2

MDL number:MFCD00000189

EINECS number:202-499-2

RTECS number:AF6300000

BRN number:506256

PubChem number:24850306

Physical property data

1. Properties: colorless to yellow liquid, hygroscopic. ^[1]

2. Melting point (℃): -50^[2]

3. Boiling point (℃): 145~146.7^[3]

4. Relative density (water=1): 1.635 (20℃)^[4]

5. Saturated vapor pressure (kPa): 2.00 (51℃)^[5]

6. Octanol/water partition coefficient: 0.72^[6]

7. Flash point (℃): 62.8^[7]

8. Solubility: insoluble in water, soluble in methanol and ether . ^[8]

Toxicological data

1. Acute toxicity: intravenous injection of LCL0 into mice: 15800 μg/kg;

2. It is strongly irritating to the eyes, mucous membranes or skin, has tear-inducing properties in the eyes, and can cause severe burns. It is easy to be absorbed through the skin if it touches the skin, or it may cause poisoning if accidentally ingested or inhaled vapor or dust. The maximum allowable concentration in the air is 100mg/m3.

Ecological data

This substance is slightly hazardous to water.

Molecular structure data

1. Molar refractive index: 25.45

2. Molar volume (cm³/mol): 94.7

3. Isotonic specific volume (90.2K ): 228.3

4. Surface tension (dyne/cm): 33.7

5. Dielectric constant:

6. Dipole moment (10^-24cm³):

7. Polarizability: 10.09

Compute chemical data

1. Reference value for hydrophobic parameter calculation (XlogP): 0.9

2. Number of hydrogen bond donors: 0

3. Number of hydrogen bond acceptors: 2

4. Number of rotatable chemical bonds: 2

5. Number of tautomers:

6. Topological molecular polar surface area (TPSA): 26.3

7. Number of heavy atoms: 6

8. Surface charge: 0

9. Complexity: 52.8

10. Number of isotope atoms: 0

11. Determine the number of atomic stereocenters: 0

12. Uncertain number of atomic stereocenters: 0

13. Determine the number of chemical bond stereocenters Number: 0

14. Number of uncertain chemical bond stereocenters: 0

15. Number of covalent bond units: 1

Properties and stability

1. Decomposition by heat releases toxic gases. Can burn when exposed to open fire.

2. Stability^[9] Stable

3. Incompatible substances^[10] Acids, alkalis, strong oxidants, strong reducing agents

4. Avoid contact� Conditions^[11] Heating

5. Polymerization hazard^[12] No polymerization p>

6. Decomposition products^[13] Hydrogen bromide

Storage method

Storage Precautions^[14] Store in a cool, ventilated warehouse. Keep away from fire and heat sources. The storage temperature should not exceed 30°C and the relative humidity should not exceed 70%. Keep container tightly sealed. They should be stored separately from oxidants, reducing agents, acids, alkalis, and food chemicals, and avoid mixed storage. Equipped with the appropriate variety and quantity of fire equipment. The storage area should be equipped with emergency release equipment and suitable containment materials.

Synthesis method

1. Obtained from bromination of acetic acid and then esterification with methanol. Add glacial acetic acid, acetic anhydride, red phosphorus and several pieces of zeolite into the dry reactor, heat to reflux, and when the temperature rises to 60-70°C, start slowly adding bromine dropwise, and keep it warm for about 1 hour after the addition. Cool and filter, then distill under reduced pressure to obtain bromoacetic acid. Add bromoacetic acid and methanol to carbon tetrachloride, then add sulfuric acid, heat to reflux and dehydrate. After dehydration is completed, steam out the carbon tetrachloride, then add methanol and reflux for 1 hour to recover the methanol. The residue is washed, dried and decompressed. Distillation, that is, the finished product is obtained.

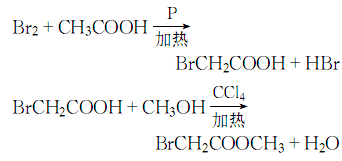

2. In a dry place A condenser, thermometer, separatory funnel, etc. are installed on the flask. Add glacial acetic acid, acetic anhydride, red phosphorus and a few pieces of zeolite, and then reflux on the sand bath. When the temperature reaches 60-70°C, start slowly dripping bromine from the separatory funnel. After adding, keep it warm for 30-60 minutes. Cool and filter, then distill under reduced pressure to obtain bromoacetic acid. Mix carbon tetrachloride, bromoacetic acid, methanol, and sulfuric acid in a sand bath and reflux and dehydrate. After dehydration is completed, the carbon tetrachloride is evaporated, and then methanol is added and refluxed for 1 hour. The methanol is recovered. After washing and drying, the remaining residue is reduced to Pressure distillation to obtain the finished product. The process reaction formula is:

Purpose

Used in the synthesis of herbicides, and also used as intermediates in the manufacture of dyes and pharmaceuticals. ^[15]
